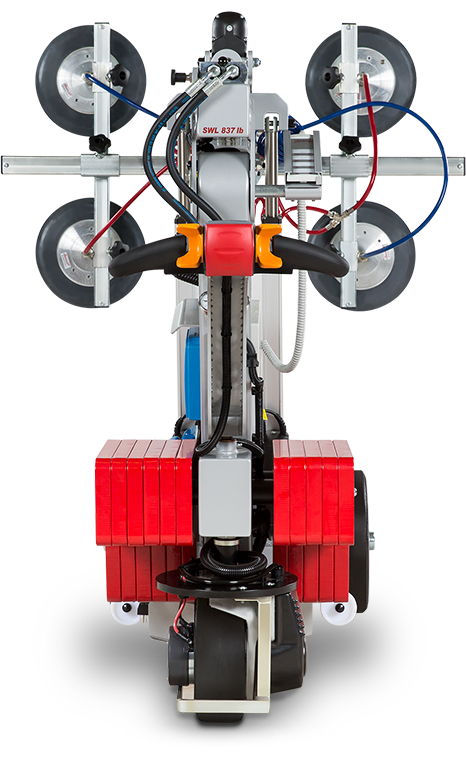

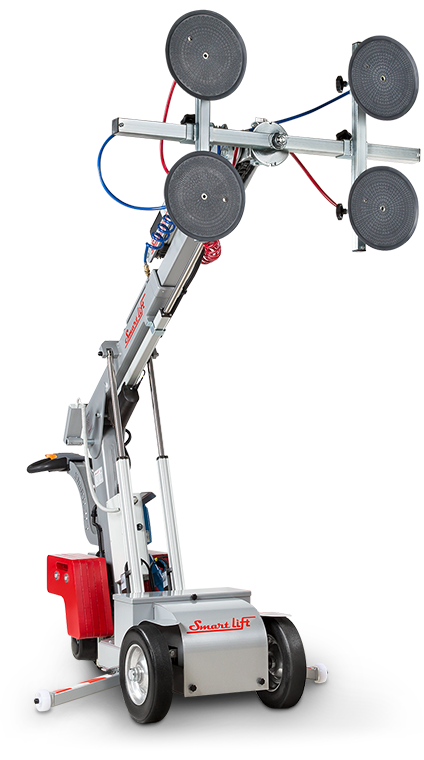

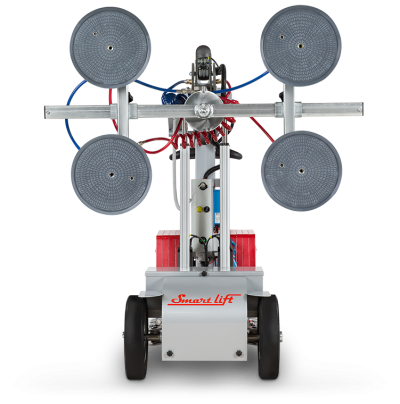

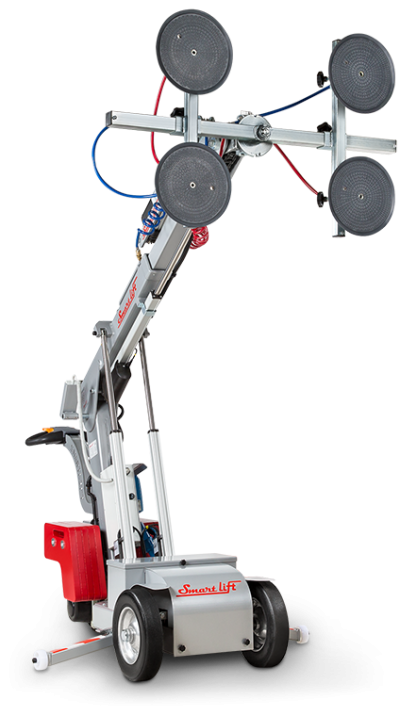

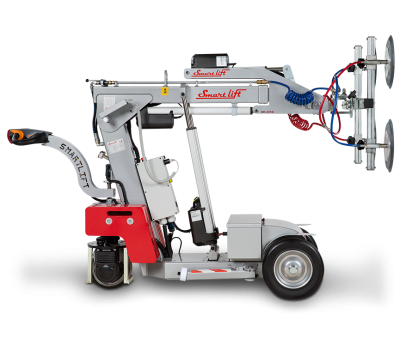

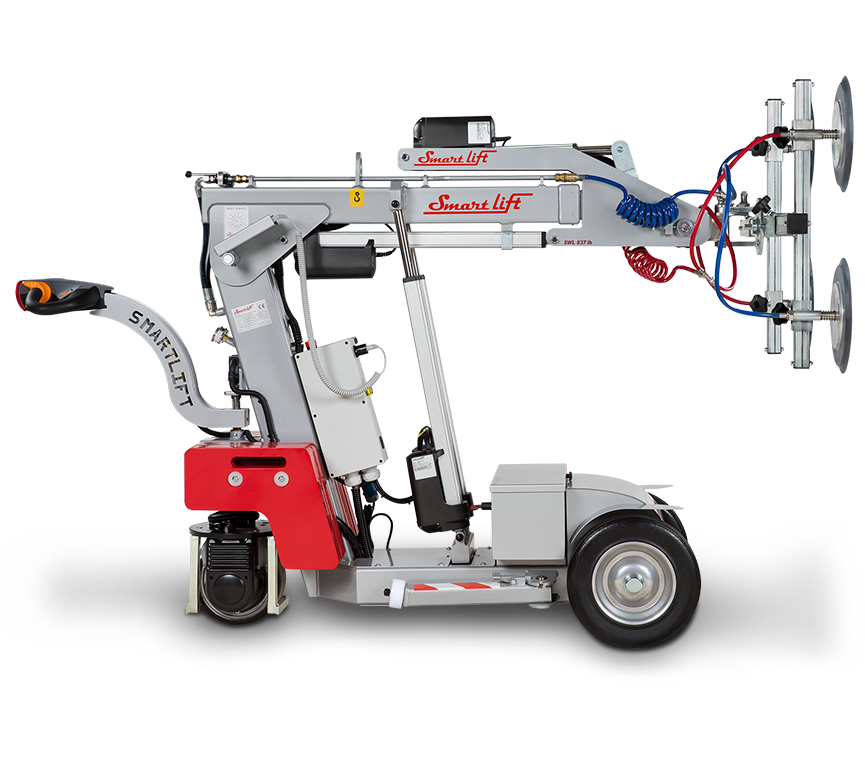

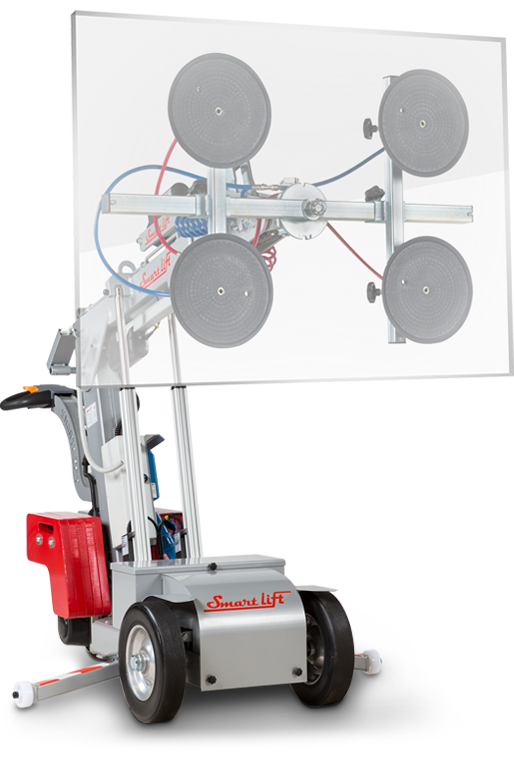

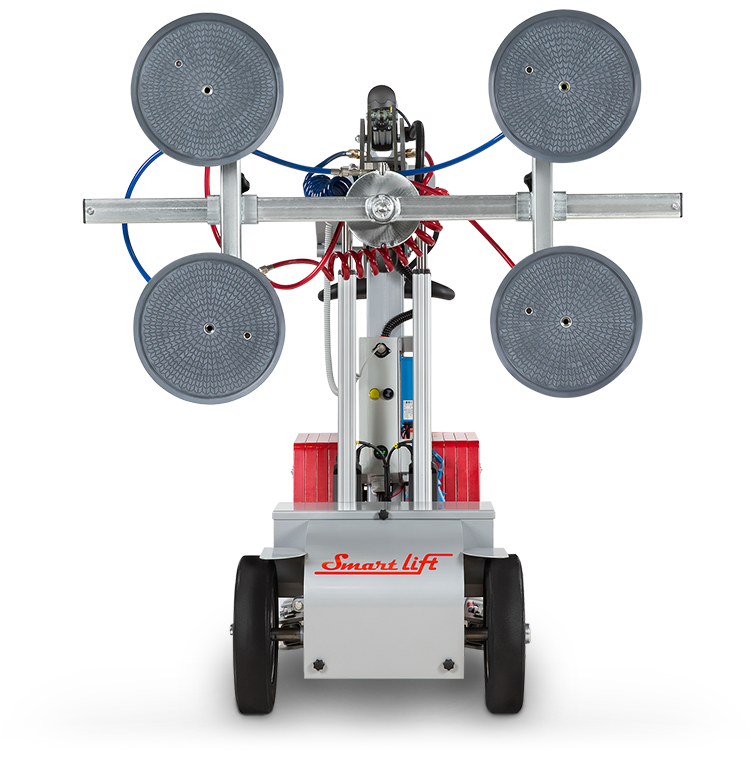

Compact and versatile—the SmartLift® 380 Indoor is the perfect machine for manipulating medium size pieces of glass into a precise position. Ideal for window fitting and installation jobs, the 380 Indoor can lift more than 830 lbs. to heights of 106 inches.
Easily transport medium-sized pieces of glass with the SmartLift® 380 Indoor. Its 700-watt, rear-wheel drive engine allows for stepless movement—that means it can easily transport glass panes over various surface types without shaking or jerking. With a vast selection of suction cups along with two vacuum circuits and two pumps, the 380 Indoor allows you to keep pieces elevated at multiple angles for extended periods of time.

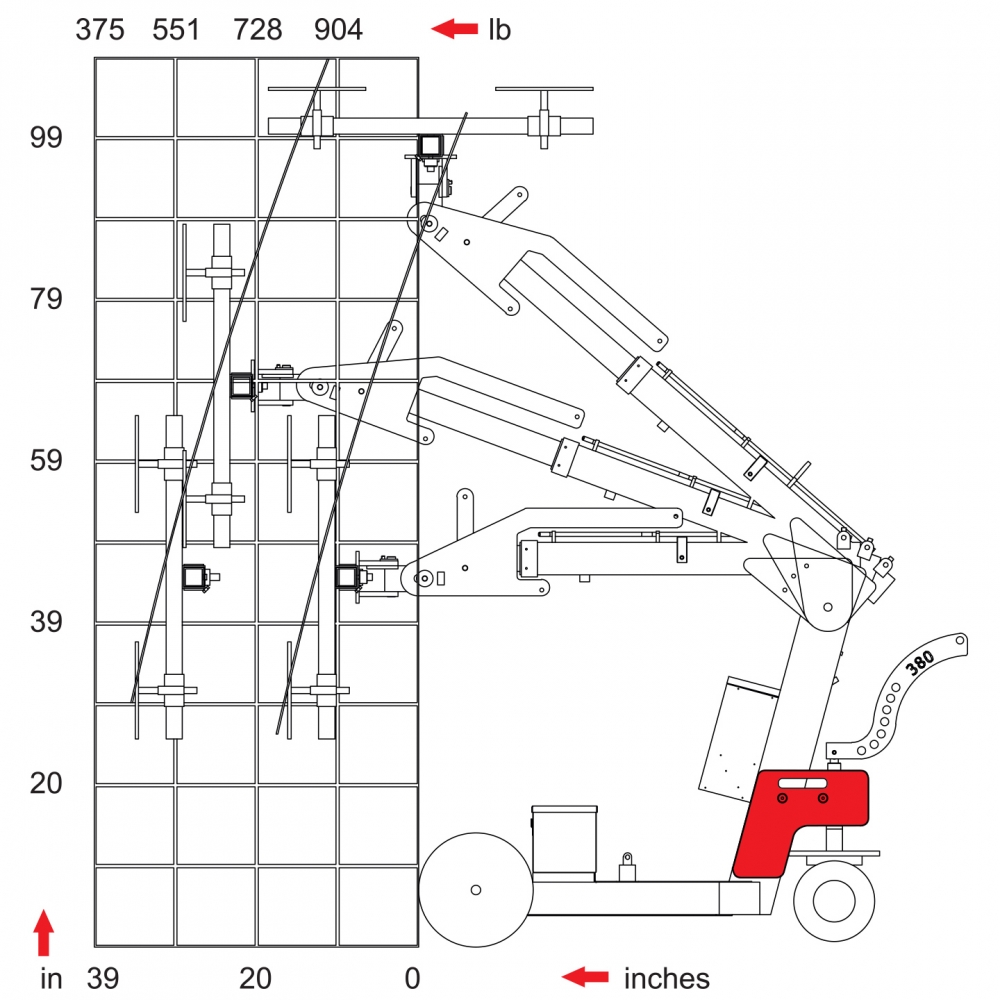

Lifting cap. arm in/out | 837 LBS / 463 LBS |
Lifting height | 106 IN. |
Extension of arm | 20 IN |
Tip from horizontal | 45° Back / 105° Forward |
Side shift | 4 IN |
Charging voltage | 110V |
Charging time | Approx. 8 hrs. |
Battery | 2 X 160 Ah |
Running period | Up to 30 HRS |
Rear wheel drive | 700 W DC |
Break | Electro-magnetic |
Suction pads | 6 x 15.75 IN |
Curb weight | 2866 LBS |
SmartLift 380 Indoor User Manual
SmartLift 380 Indoor Full Specifications
SmartLift 380 Rental Agreement
Rates for Rentals Only
PRODUCT | SKU | 1 | QTY | |
---|---|---|---|---|
SmartLift 380 Indoor | SL380I | (hidden) | Please login to see prices. |
