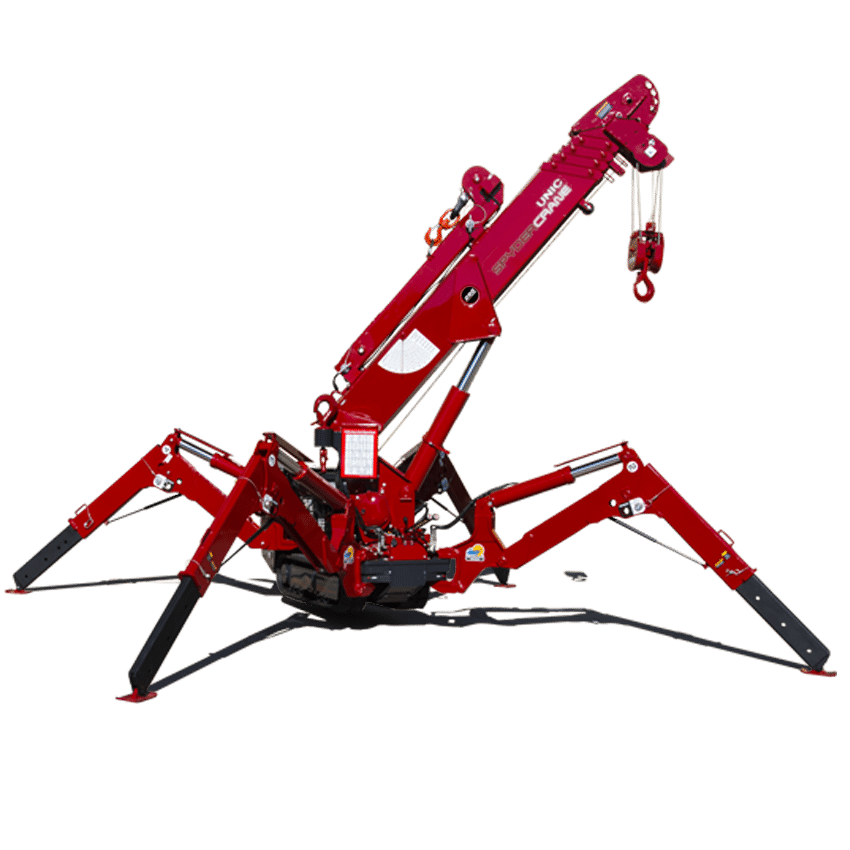

SpyderCrane URW295

The SPYDERCRANE URW295 Mini-Crawler Crane was the first Mini-Crawler crane introduced to the North American market and it is still the leader today. Like it's sister models, the URW095 and URW294, this compact crane is a mere 24 inches wide, allowing it to travel through a standard doorway on its rubber crawler tracks. Additionally, URW295 boasts a lightweight design allowing the SPYDERCRANE to be moved from floor to floor on a standard freight elevator

Along with it's flexibilty, the URW295 has a continuous rotation of 360 degrees and a maximum lifting capacity of 6,450 lbs at 4.6ft along with a variable geometric footprint courtesy of adjustable outriggers. (52 different positions) This allows for set-up in tight spots such as hallways, balconies, or around obstacles as needed. As an added feature, the URW295 model comes equipped with a wireless radio remote control system; freeing the operator from being tethered to the crane for unlimited positioning.

The champion of the SPYDERCRANE family, the URW295 can be seen everywhere from the rooftops of New York, to the oil fields of Texas.

About Spydercrane URW295

• Compact Design – Only 24” Wide When Compacted
• 360 Degree Continuous Rotation
• 5-Section Hydraulically Telescoping Boom, with 6-sided Hexagonal Box Construction
• 6ft Offsettable Jib with Searcher Hook (includes a Single-line Swivel Ball)
• Anti Two-Block System
• Automatic Hook Stow System
• Patented Overturn Protection System
• 52 Possible Outrigger Positions
• Over-winding Prevention Device and Alarm
• Minimum Wire Rope Automatic Stop
• Onboard Self-diagnostic Computer System
• Single Point Lift Cylinder
• Automatic on-demand Throttle Advancement
• Centrally Located Infinitely Variable Controls
• Variable Displacement Piston Pump for Multi-function Operations
• Hydraulic Circuit Pressure Relief Valve
• Visual Load Indicator
• Wide Range of Engine Options: Gasoline, Diesel, Propane, Electric, Battery or Combination

Safety Features

• Anti Two-Block System
• Automatic Hook Stow System
• Patented Turnover Protection System allows for up to 52 outrigger configurations
• Over-winding Prevention Device and Alarm
• Voice Messaging to Alert Operator if an Unsafe Operation is Being Performed
• Minimum Wire Rope Automatic Stop
• Hydraulic Circuit Pressure Relief Valve
• Visual Load Indicator
